How to Design Metal Stampings
Things We've Learned From Years Making Metal Stampings

15. Recommended Limits of Embossed Parts

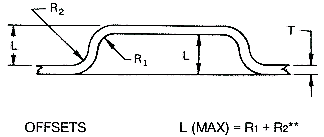

Limits for depths of embossments to minimize fracturing.

Metal Stamping Recommendation Limits of Embossed Parts

** Reduce to .5(R1 + R2) for commercial grades of steel, one quarter hard tempers, and alloys of aluminum.
