How to Design Metal Stampings
Things We've Learned From Years Making Metal Stampings

3. Piercing Round Holes

To pierce holes with economical tools and operations, the hole diameter must not be less than the stock thickness. If the hole diameter is less than the material thickness (or less than 0.060") it usually must be drilled and deburred and each of these operations is slower than punching.

Metal Stamping Piercing Round Holes

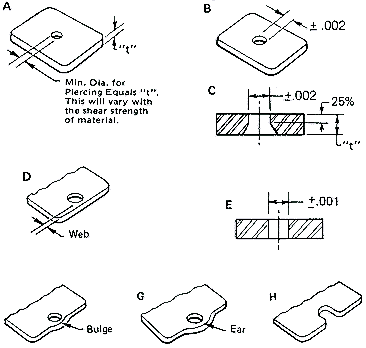

Illustration B indicates a hole diameter with a tolerance of plus or minus 0.002". We can pierce a hole within these limits on the punch side for approximately 25% to 30% of the material thickness as indicated in illustration C. The percent of thickness varies with the shear strength of the materials.

On holes where a machine finish is required, they can be punched undersized, redrilled and reamed to size as shown (see illustration E).

If the web (distance between the hole and edge of material) is a minimum of the stock thickness, the hole can be punched which is less expensive than drilling and deburring (see illustration D).

A web that is less than the stock thickness will result in a bulge on the blank. Bulge conditions would increase progressively as the web decreases, until there would be a complete break through. However, the bulge is hardly visible until the web is reduced to less than 1/2 the stock thickness. These examples would also apply to a web between holes (see illustration F).

If a measurable bulge is not permitted, a drilling and deburring operation may be necessary.

As a suggestion, if the web is too narrow, the profile of the blank could be changed by adding an ear of sufficient dimensions and shape to eliminate the problem. (see illustration G).

Another alternate suggestion would be to change the contour of the blank to include the hole as a notch (see illustration H). The notch could either be pierced or be wide enough so it could be included in the blank without a piercing or notching operation. (See Blank Design section.)

Caution: The addition of the word "thru" to any hole diameter, regardless of tolerances, indicates the requirement of the hole to be reamed. Reaming and the additional chamfer to remove burr adds two extra operations to the cost of the part.
