How to Design Metal Stampings
Things We've Learned From Years Making Metal Stampings

9. Specifications and Measurement of Formed Parts

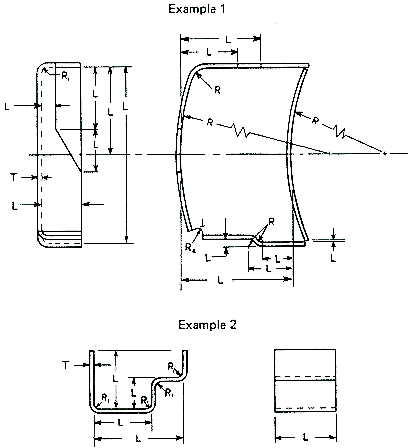

Preferred dimensioning and points to measure:

L = Linear dimensions; corner radius
R = Radii
R1 = Typical inside bend
R2 = Radius in flat blank
T = Material thickness

Metal Stamping Specifications and Measurement of Formed Parts
